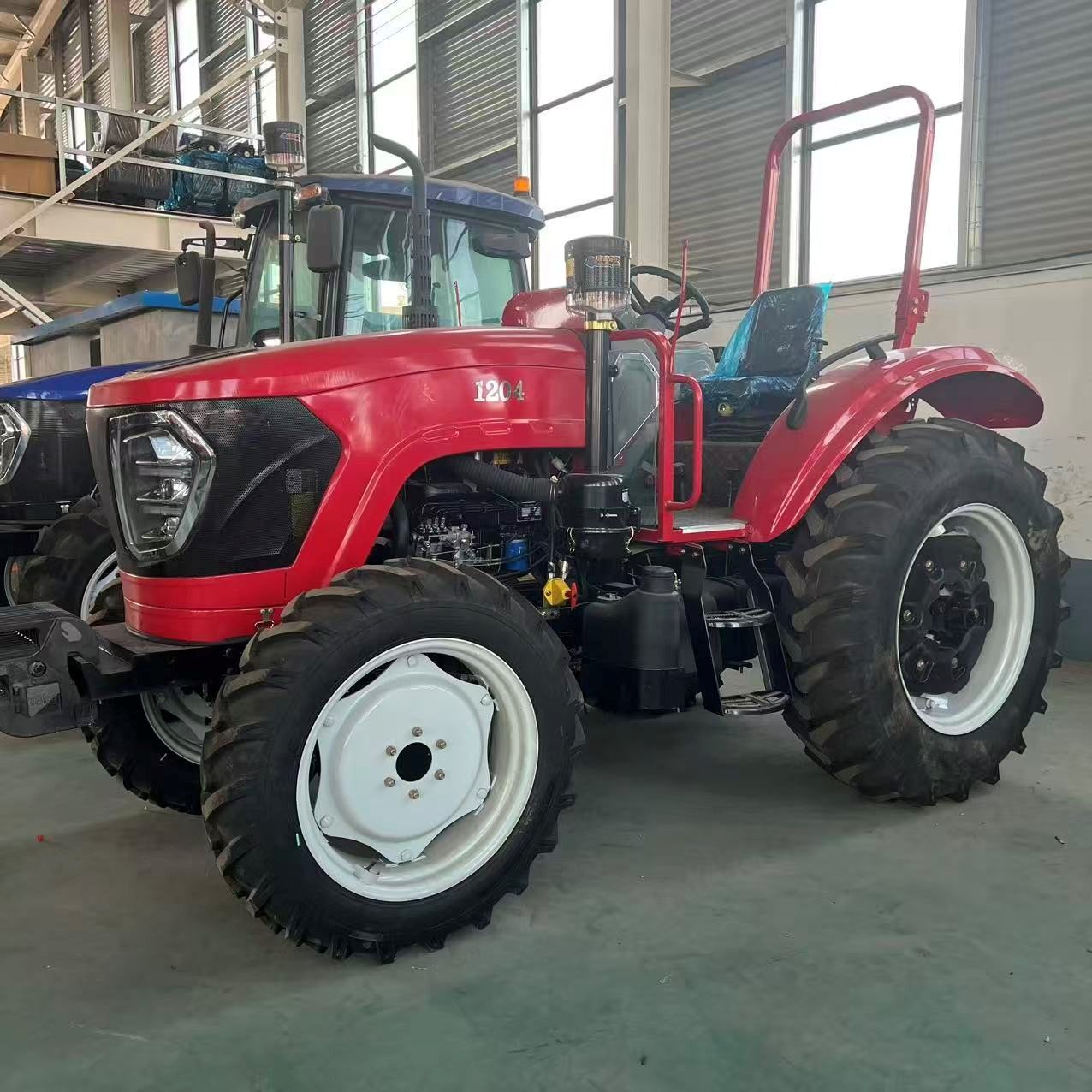

1204 wheeled tractor
The driving form of the whole machine: four-wheel drive and two-wheel drive switching
Weight of the whole machine: 2800Kg
Appearance dimension (length/width/height): 3700*1750*2250mm.
Ground clearance: 400mm
Worktable: LCD instrument table
Steering form: hydraulic assist.
Wheel track: 1.3m adjustable.
Rear axle: TB
Counterweight: front 8 and rear 2
Gear: 12+12 shuttle shift
Connection mode of engine and main clutch: direct connection
Engine structure: in-line direct water cooling.
Engine manufacturer: Weifang 120 HP
Air intake mode of engine: self-priming.
Number of engine cylinders: 4 cylinders
Standard engine speed: 2400 rpm/88.2k.
Engine cooling mode: water cooling.
Tire type: front 9.5-24 rear wheel 14.9-30
Suspension device form: three-point suspension
Number of hydraulic output groups: 3 groups of multi-way valves.
Number of revolutions of PTO: 540/720
