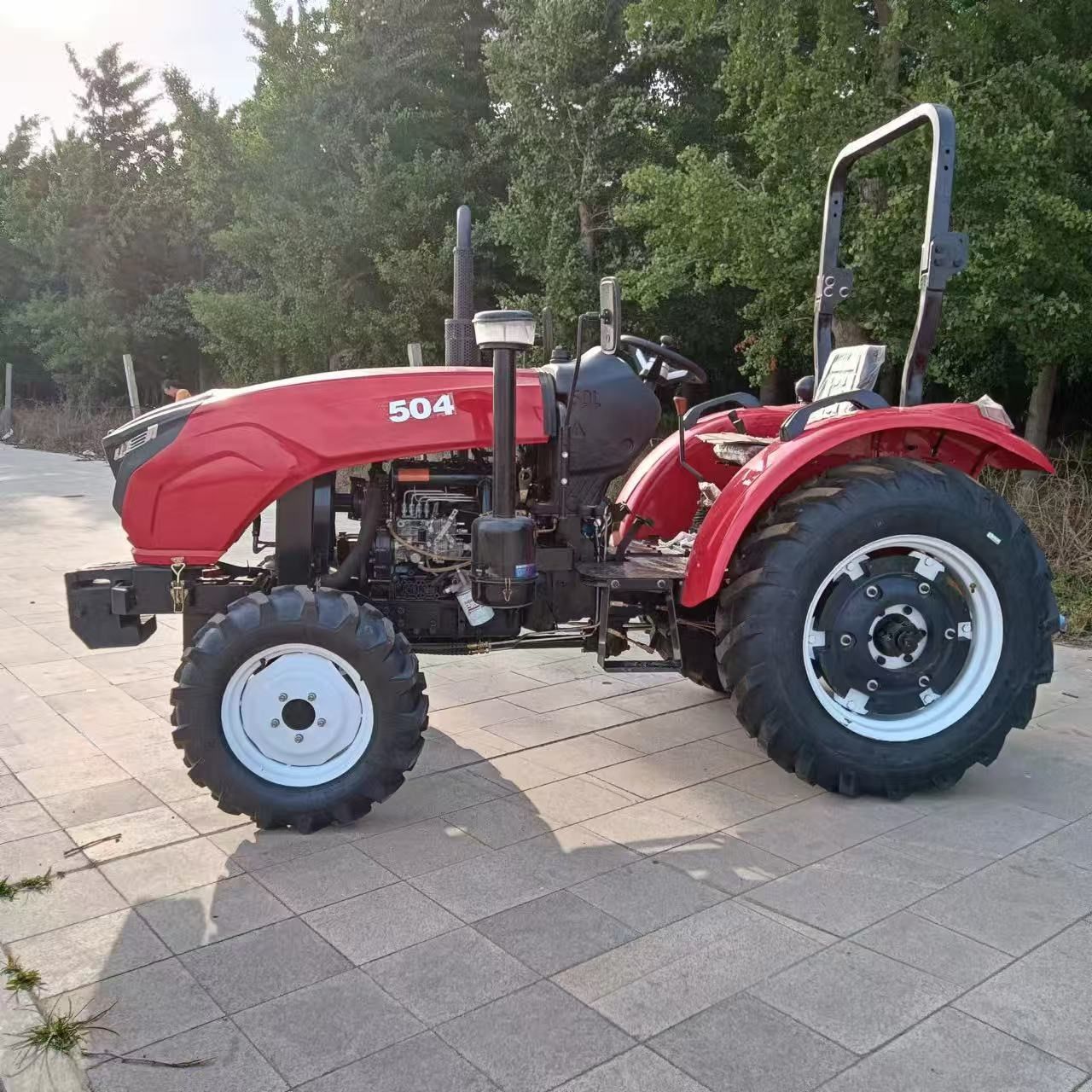

504 wheeled tractor
The driving form of the whole machine: four-wheel drive/two-wheel drive can be switched.
Weight of the whole machine: 1380Kg
Appearance dimension (length/width/height): 3100*1500*1970mm.
Ground clearance of 260mm
Worktable: LCD instrument table
Steering form: hydraulic assist.
Wheel track: 0.96-1.3m adjustable.
Rear axle: TYE
Counterweight: front 4 and rear 2
Gear: 8+8 shuttle shift
Connection mode of engine and main clutch: direct connection
Engine structure: in-line direct water cooling.
Engine manufacturer: Weifang 50 HP
Air intake mode of engine: self-priming.
Number of engine cylinders: 4 cylinders
Standard engine speed: 2400 rpm/36.8k.
Engine cooling mode: water cooling.
Tire type: front 650-16 rear wheel 11.2-24
Suspension device form: three-point suspension
Number of hydraulic output groups: 2 groups of multi-way valves.
Number of revolutions of PTO: 540/720
