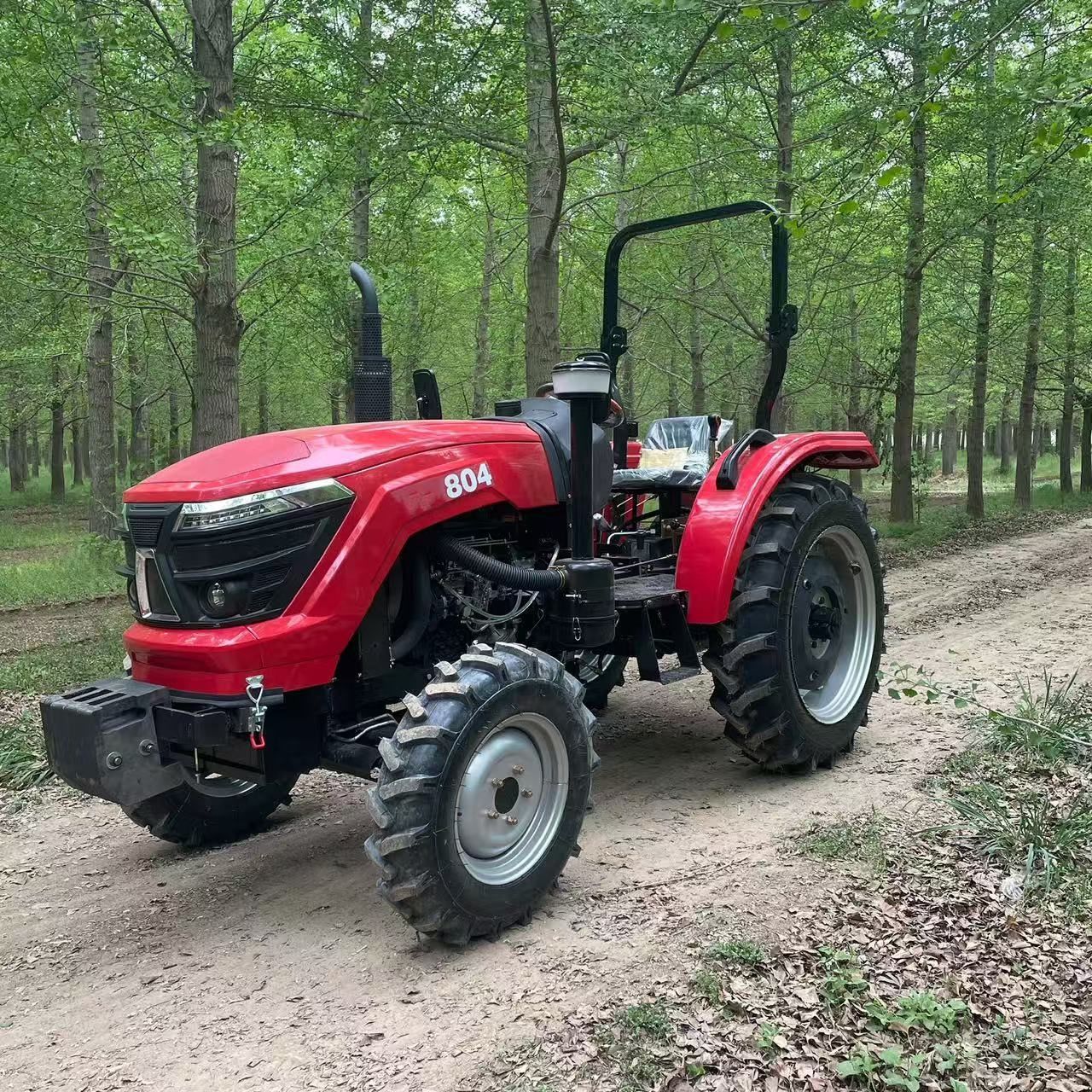

804 wheeled tractor
The driving form of the whole machine: four-wheel drive and two-wheel drive switching
Weight of the whole machine: 1550Kg
Appearance size (length/width/height): 3300*1500*2050mm.
Ground clearance: 300mm.
Worktable: LCD instrument table
Steering form: hydraulic assist.
Wheel track: 0.96-1.3m adjustable.
Rear axle: TE
Counterweight: front 4 and rear 2
Gear: 8+8 shuttle shift
Connection mode of engine and main clutch: direct connection
Engine structure: in-line direct water cooling.
Engine manufacturer: Weifang 80 HP
Air intake mode of engine: self-priming.
Number of engine cylinders: 4 cylinders
Standard engine speed: 2400 rpm /59K
Engine cooling mode: water cooling.
Tire type: front 750-16 rear wheel 11.2-28
Suspension device form: three-point suspension
Number of hydraulic output groups: 2 groups of multi-way valves.
Number of revolutions of PTO: 540/720
